Phoenix Contact Device Connector, Front Mounting with Knurled Nut
#Grup produk P105753885
Spesifikasi
| Coding | N |
|---|---|
| Number of Positions | 13 |
| Application | Hybrid |
| Connection Method | Crimp connection |
| Contact Diameter Signal Contacts (mm) | 1 |
| Flammability Rating According To Ul 94 | V0 |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Insertion/Withdrawal Cycles | 100 |
| Insulation Body Material | PA 6.6 |
| Maximum Litz Wire Cross Section of Signal Contacts (mm²) | 1 |
| Nominal Current Per Signal Contact (A) | 8 |
| Operating Ambient Temperature (°C) | -40 to 115 (see derating curve) |
| Pg Screw Connection | None |
| Product Type | Circular connectors (device side) |
| Thread Type | M23 |
| Type | straight |
| Type of Locking | SPEEDCON |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan

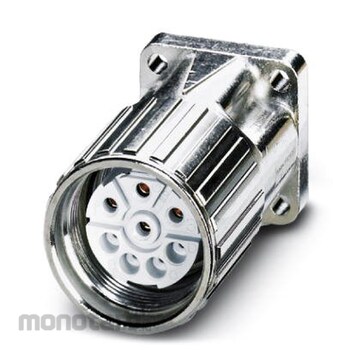

Foto produk pada halaman ini hanya sebagai gambaran dari produk namun dengan versi 8-posisi (4+3+PE) productWarning
Delivery time on request.Made to Order (non-returnable).
Feature
Device connector, front mounting with knurled nut, straight, Screw locking, M23, number of positions: 5+PE, type of contact: Socket, Axial O-ring, 4x Ø 3.2, shielded: yes, flange dimensions: 26 mm x 26 mm, degree of protection: IP67, cable diameter range: 0 mm ... 0 mm, number of positions: 6, connection method: Crimp connectionUlasan Produk
