Phoenix Contact PCB Connector PT Series
#Grup produk P105748528
Spesifikasi
| Number of Positions | 2 |
|---|---|
| Ambient Temperature for Assembly (°C) | -5 to 100 |
| Conductor Cross Section Awg | 26 to 16 |
| Conductor Cross Section Flexible (mm²) | 0.2 to 1.5 |
| Conductor Cross Section Rigid (mm²) | 0.2 to 1.5 |
| Contact Material | Cu alloy |
| Contact Resistance (miliΩ) | 1.4 |
| Degree of Pollution | 3 |
| Flammability Rating According To Ul 94 | V0 |
| Insertion/Withdrawal Cycles | 10 |
| Insulating Material | PA |
| Nominal Current IN (A) | 8 |
| Operating Ambient Temperature (°C) | -40 to 100 (dependent on the derating curve) |
| Product Type | PCB connector |
| Product family | PT 1,5/..-PH |
| Storage/Transport Ambient Temperature (°C) | -40 to 70 |
| Stripping Length (mm) | 5 |
| Test Duration per Axis (hour) | 2.5 |
| Tightening Torque (N m) | 0.22 to 0.25 |
| Type | Plug for pin strip |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan

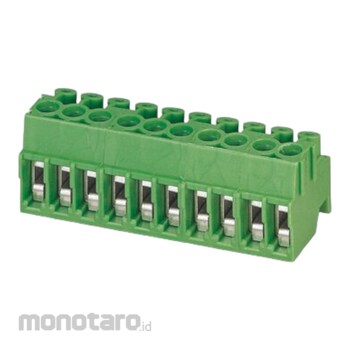

Foto produk pada halaman ini hanya sebagai gambaran dari produk namun dengan versi 10-posisi pada produkWarning
Delivery time on request.Made to Order (non-returnable).
Feature
PCB connector, nominal cross section: 1.5 mm², color: black, nominal current: 10 A, rated voltage (III/2): 400 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, Number of rows: 1, Number of positions per row: 2, number of connections: 2, product range: PT 1,5/..-PH CLIP, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, plug-in system: COMBICON COMPACT PST 1,3, Locking: without, mounting: without, type of packaging: packed in cardboardUlasan Produk
