Spesifikasi
| Cable Length (m) | 2 |
|---|---|
| Diameter Probe shaft (mm) | 0.25 |
| Dimensions (mm) | 2.2x1.4 |
| Length Probe shaft (mm) | 500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description

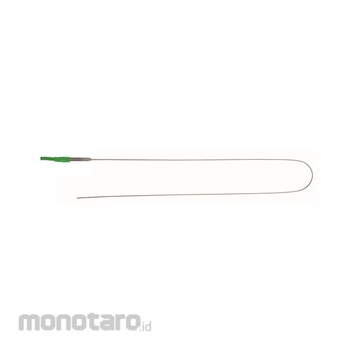

This thermocouple (TC) temperature probe with flexible, low-mass tip is suitable for air temperature measurements and also for measurements in liquids and pastes - particularly in small-volume media, e.g. petri dishes. You can also carry out temperature measurements on surfaces if you fix the temperature probe in place at the measuring point, for example with adhesive tape.
Thanks to its very thin tip, which is 0.25 mm in diameter, the temperature probe has an exceptionally short response time of just 1 second. Therefore it is able to record very brief temperature peaks and is also suitable for air temperature measurements.
The temperature probe can record both very low and extremely high temperatures: -200 to +1000 °C. It has an oval (2.2 mm x 1.4 mm) FEP-insulated, 2 m long thermocouple cable. The thermocouple cable can be pushed through narrow openings such as slits in doors or refrigerator seals. It is heat-resistant up to +200 °C.
This Type K, Class 1 thermocouple probe has (within the measuring range -40 to +1000 °C) a standardized accuracy of ±1.5 °C or 0.004 x I t I (the higher value applies). This means that at a temperature of +500 °C, this probe has an accuracy of ±2 °C (since 0.004 x 500 °C = 2 °C).
The perfect probe for any application
Don't see the temperature probe you are looking for? Please contact us directly. We have a large range of standard temperature probes and we also manufacture customized probes specifically according to your personal requirements.
Product Includes: 1 x exceptionally fast TC Type K temperature probe with large measuring range 0602 0493.
Feature
TC Type K temperature probe with flexible measuring tip, short response time and 2 m cable**Very fast temperature measurement in air, liquids, pastes and on surfaces**Measuring range: -200 to +1000 °C**Exceptionally fast temperature probe with a large measuring range for measurements in air, liquids, pastes and on surfacesUlasan Produk
