Thermodynamic steam trap without integral strainer. Compact, light weight design, in full stainless steel construction.
INSTALLATION:
The trap will operate in any position, but the preferred installation is in the horizontal plane with the cap on the top. Full port isolating valves should be installed upstream and downstream of the trap for safe maintenance. Always
open isolation valves slowly until normal operating conditions are achieved to avoid system shocks.
MAINTENANCE:
The trap can be maintained without disturbing the piping connections. Ensure that the trap is isolated - upstream and downstream - before attempting to dismantle it. ALLOW THE TRAP TO COOL BEFORE DISMANTLING.
Periodic cleaning of the disc and seat will facilitate troublefree performance. Do not use abrasive/corrosive media for cleaning. Only the disc and seat are subject to wear. A worn disc can be replaced and slight seat wear can be corrected by resurfacing on a lap plate.
IMPORTANT:
For new installations, the system should be properly flushed prior to fitting the trap.
AVAILABLE SPARES:
Disc (Packet of 5), Isotub

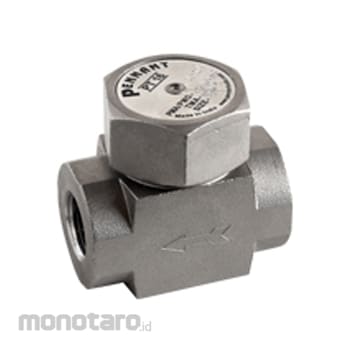

Pennant Thermodynamic Steam PT16
#Grup produk P105733447
Sebelum PPN:
Rp1.199.900 - Rp1.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection | Screwed (NPT/BSPT/BSP), Socket Weld |
|---|---|
| Max. Allowable Pressure (psig) | 600 |
| Maximum Allowable Temperature (°F) | 800 |
| Cold Hydro Test Pressure (psig) | 900 |
| Minimum Differential Pressure For Satisfactory Operation (Psi) | 3.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Better corrosion and wear resistance ensured by the total stainless steel construction. It meets the requirements of quick response applications in the steam system. The disc and seat are hardened to withstand continuous and prolonged operation. Condensate entry below the disc, concentric to the disc/seat ensures a clean and parallel lift of the disc with reference to the seat, eliminating localized wear and tear. Ideal for fluctuating loads and pressures. Perfect shut-off, no steam loss.Ulasan Produk
