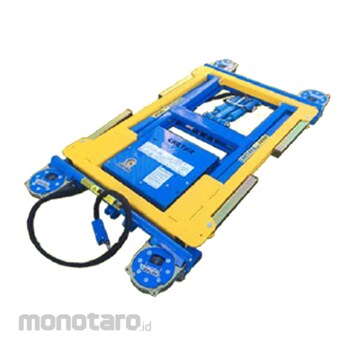

CARTAR Lift Model Glidemaster
#Grup produk P105471778
Spesifikasi
| Retracted Height (mm) | 115 (4-5inch) (exclude 5inch wheels) |
|---|---|
| Elevated Height (mm) | 800 (32inch) |
| Length when Fully Lowered (m) | 2 (78.5inch) |
| Width when Arms Retracted (mm) | 1050 (41.5inch) |
| Power Source | Air Compressor |
| Maximum Lift Load (kg) | 2800 (6160lbs) |
| Direction of Load | Front, Rear or Side Entry |
| Leaf Chain | BL 534 |
| Oil Grade | Hydraulic 46 grade |
| Oil Volume in Tank (L) | 5 (1-3Gallons) |
| Power Pack and Oil Tank | Built in and on board |
| Required Air Pressure (psi) | 50-100 |
| Shipping Weight (kg) | 285 (628lbs) |
| Weather Resistant | Use Inside or Outside |
| Wheel Turning Circle (°) | 360 |
