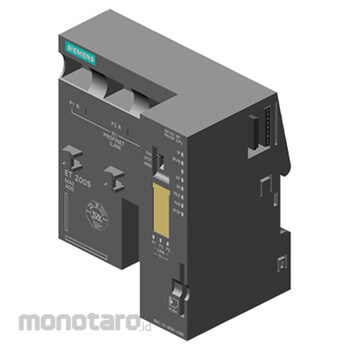

SIEMENS Simatic DP, IM151-8F PN/DP CPU F. ET200S
#Grup produk P105196390
Spesifikasi
| HW Functional Status | 01 |
|---|---|
| Firmware Version | V3.2 |
| Programming Package | STEP 7 V5.5 or higher, Distributed Safety V5.4 SP4 |
| Rated Value (DC)(V) | 24 |
| Permissible Range, Lower Limit (DC)(V) | 20.4 |
| Permissible Range, Upper Limit (DC)(V) | 28.8 |
| Backplane Bus (5V DC) Max. (mA) | 700 |
| Dimensions (WxHxD) (mm) | 120x119.5x75 (Width DP master module: 35mm) |
| External Protection for Power Supply Lines (recommendation) | 2A min. |
| From Supply Voltage 1L+ Max. (mA) | 352; 426 with DP master module |
| Inrush Current, Typ. (A) | 1.8 |
| Maximum PROFINET IO Controller Transmission Rate (Mbits/s) | 100 (full duplex) |
| Number of Ports Interface Types | 3; RJ45 |
| Plug-in (MMC) Max. | Yes; 8Mbyte |
| Power Loss Typical (W) | 5.5 |
| Size of Retentive Memory for Retentive Data Blocks (kbyte) | 64 |
| Transfer Memory Inputs/Output Max. (Byte) | 1440 (per IO Controller with shared device) |
| Weight (g) | Approx. 320, Approx. 100 (DP master module) |
| Work Memory Integrated (kbyte) | 256 (For program and data) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SIMATIC DP, IM151-8F PN/DP CPU f. ET200S, 256 KB work memory, int. PROFINET interface (with three RJ45 ports) as IO controller/I-device without battery, MMC required
