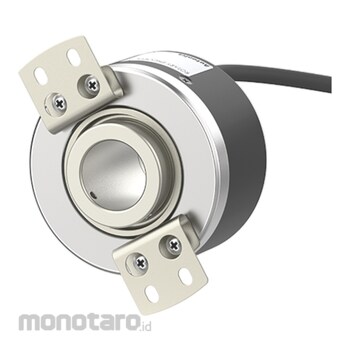

Autonics Rotary Encoders Incremental Type E60H(Sine Wave) Series
#Grup produk P105022174
Kondisi Barang:
Authorized Partner
Spesifikasi
| Accessories | Bracket: 2 |
|---|---|
| Humidity Level | 35-85%RH, Enclosed space: 35-90%RH |
| Inner Shaft Diameter (mm) | Ø20 |
| Maximum Allowed Resolution (rpm) | 6000 |
| Certification | CE |
| Control Output | Analog sine wave OP Amp output |
| Environment Temperature Level (°C) | -20 to 100, enclosed space: -25 to 100 |
| Maximum Frequency Response (kHz) | 200 |
| Output Phase | A,, B,, Z,, C,, D, |
| Power Supply (V) | 5 DC ±5% (ripple P-P: Max. 5%) |
| Resolution | 2048P/R |
| Standard Protection | IP40 |
| Starting Torque (gf.cm) | Max. 200gf- cm (0.02N- m) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The E60H series sine wave incremental rotary encoders transmit analog sine wave operational amplifier (op-amp) output for speed regulation and position control. C, D output phase signals can be used to calculate absolute position and A, B output phase signals can be multiplied to offer high precision position control comparable to over 10,000 pulses.
