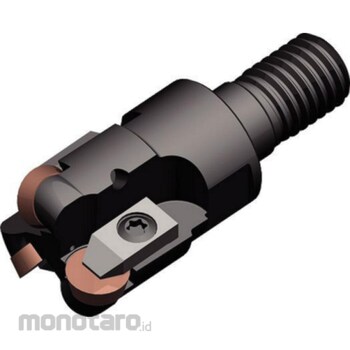

KENNAMETAL ISO Milling Cutter Kendex Round Ceramic Z3 RPG43
#Grup produk P104871139
Spesifikasi
| ISO Number | KIPR125RP43M1603 |
|---|---|
| SAP Material Number | 3760370.0 |
| [D1MAX] Maximum Cutting Diameter (mm) | 31.75 |
| [D1] Effective Cutting Diameter (mm) | 19.05 |
| [D] Adapter / Shank / Bore Diameter (mm) | 29 |
| [DPM] Pilot Diameter Machine Side (mm) | 17 |
| Maximum Ramping Angle | 2.5 |
| Number of Inserts | 3 |
| [AP1MAX] 1st Maximum Cutting Depth (mm) | 6.35 |
| [G3X] Connection Thread Size External | M16 |
| [L2] Head Length (mm) | 38.1 |
| [WF] Width of Flat (mm) | 22 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Screw-On End Mills
