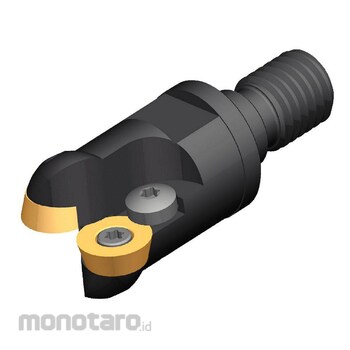

KENNAMETAL D&M Milling Cutter Mod. Screw on round
#Grup produk P104866757
Spesifikasi
| ISO Number | 35E03R043M16SRD12 |
|---|---|
| SAP Material Number | 1888422.0 |
| [D1MAX] Maximum Cutting Diameter (mm) | 35 |
| [D1] Effective Cutting Diameter (mm) | 23 |
| [D] Adapter / Shank / Bore Diameter (mm) | 29.0 |
| [D2] Maximum Body Diameter (mm) | 32.6 |
| Maximum Ramping Angle | 11 |
| Number of Inserts | 3 |
| [AP1MAX] 1st Maximum Cutting Depth (mm) | 6 |
| [DPM] Pilot Diameter Machine Side (mm) | 17 |
| [G3X] Connection Thread Size External | M16 |
| [L2] Head Length (mm) | 43 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Screw-On End Mills - RD.X12...
Peringatan
Foto produk hanya representasi. Mohon mengacu pada model number, ukuran dan spesifikasi untuk aktual produk.Warning
Representative product photo. Please refer to model number, size and specification for actual product.Ulasan Produk
