- The recommended shaft tolerance is h7.
- Custom process (e.g. non-standard Inner diameter, special tolerance etc.) is also available upon a special request in prior to order placement.
- Keyway is available. (Optional)
- Due to interference of the middle parts, make sure the shaft is only inserted into L1 depth for IDs with ★ mark.
- Side-clamp Hub Split is available (Optional)
Slip Torque
- The below table shows the actual permissible torque values when the slip torque value is lower than the coupling’s max. torque value.
- If the slip torque value is lower than the coupling’s max. torque value, please check and compare between the slip torque in the below table and the operating torque value of the connected motor. It is safer to size up the coupling or use a key/keyway when the slip torque value is lower than the motor’s operating torque.
- The below slip torque values may be subject to change according to different testing conditions. (e.g. shaft tolerance, Surface roughness, or acceleration/deceleration of driving shafts). On the other hand, the values could be affected when a different kind of fastening screw is used (body material or surface treatment). Therefore, we recommend you test under the same conditions before mounting.

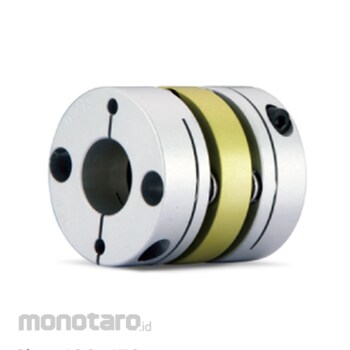

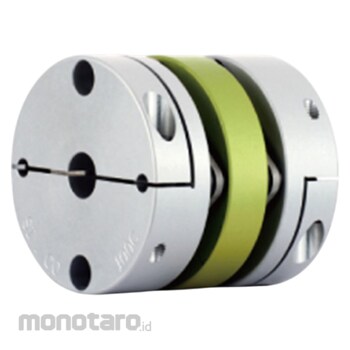

Sung-IL Machinery Double Disk Type Flexible Coupling
#Grup produk P104658112
Spesifikasi
| Item Type | SD-SERIES |
|---|---|
| Dimension L (mm) | 50.0 |
| Dimension L1 (mm) | 16.0 |
| Dimension F (mm) | 5.2 |
| Size Screw | M4 |
| Fastening Torque (N m) | 3.5 |
| Static Torsional Stiffness (N m/rad) | 4000 |
| Angular (°) | 1.5 |
| Parallel (mm) | 0.2 |
| End-play (mm) | ±0.5 |
| Fastening Method | General Clamp Type |
| Shape | Cylinder |
| Inside Diameter d1xd2 (mm) | 7x7 |
| Maximum Speed (rpm) | 7500 |
| Maximum Torque (N m) | 24.0 |
| Moment of Inertia (kg.m²) | 5.5x10-5 |
| Outside Diameter D1 (mm) | 20.5 |
| Rated Torque (N m) | 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- The Moment of Inertia and Mass values are based on products with max. Inner diameter.- Non-standard lengthy middle body type can be customized.
- Max. torque/rated torque is the value regarding to a coupling’s self-durability and is not related to slip-torque between the coupling bore and the shaft. (In general, the clamping force on set-screw type is weaker, therefore it is recommended that an additional keyway is processed for the enhanced clamping force.)
- The recommended shaft tolerance is h7.
- Custom process (e.g. non-standard Inner diameter, special tolerance etc.) is also available upon a special request in prior to order placement.
- Keyway is available. (Optional)
- Due to interference of the middle parts, make sure the shaft is only inserted into L1 depth for IDs with ★ mark.
