Sandvik Insert TCMX-WM
#Grup produk P104032882

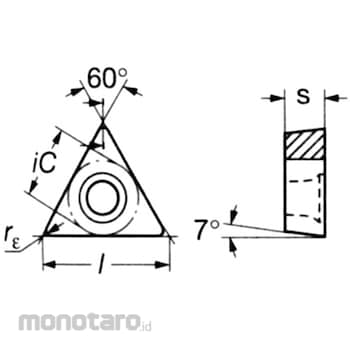

Spesifikasi
| Corner Radius (mm) | 0.8 |
|---|---|
| Thickness Tolerance (mm) | +/-0.13 |
| Cutting Edge Length (mm) | 16.5 |
| Inscribed Circle Tolerance (mm) | +/-0.05 to +/-0.13 |
| Corner Height Tolerance (mm) | +/-0.08 to +/-0.18 |
| Thickness (mm) | 3.97 |
| Clearance Angle (degree) | 7 |
| Dimension IC (mm) | 9.525 |
| Dimension L (mm) | 16 |
| Dimension Repsilon (mm) | 0.8 |
| Dimension S (mm) | 3.97 |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Material | 3210 |
| Presence or absence of holes | Yes |
| Shape | Equilateral triangle 60 degrees |
| TRUSCO Number | 695-1520 |
