Sandvik Insert DCMT-UR
#Grup produk P104024500

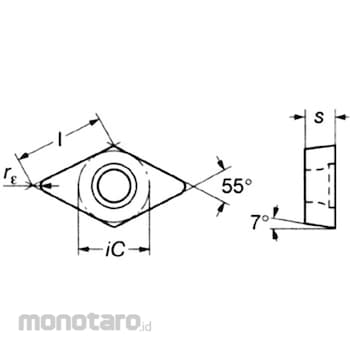

Spesifikasi
| Dimension L (mm) | 11 |
|---|---|
| Clearance Angle (degree) | 7 |
| Corner Radius (mm) | 0.8 |
| Inscribed Circle Tolerance (mm) | +/-0.05 to +/-0.13 |
| Shape | Rhombus 55 degrees |
| Nose Radius r (mm) | 0.8 |
| Chip breaker | Single side |
| Corner Height Tolerance (mm) | +/-0.08 to +/-0.18 |
| Cutting Edge Length (mm) | 11.6 |
| Dimension IC (mm) | 9.525 |
| Dimension Repsilon (mm) | 0.8 |
| Dimension S (mm) | 3.97 |
| Hole Shape | Some cylindrical holes One side 40 degrees to 60 degrees |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Presence or absence of holes | Yes |
| Thickness (mm) | 3.97 |
| Thickness Tolerance (mm) | +/-0.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
