Sandvik Insert CCMT-UR
#Grup produk P104023592
Spesifikasi
| Presence or absence of holes | Yes |
|---|---|
| Material | 235 |
| Hole Shape | Some cylindrical holes One side 40 degrees to 60 degrees |
| Dimension L (mm) | 6 |
| Dimension IC (mm) | 6.35 |
| Inscribed Circle Tolerance (mm) | +/-0.05 to +/-0.13 |
| Chip breaker | Single side |
| Clearance Angle (degree) | 7 |
| Corner Height Tolerance (mm) | +/-0.08 to +/-0.18 |
| Corner Radius (mm) | 0.4 |
| Cutting Edge Length (mm) | 6.5 |
| Dimension Repsilon (mm) | 0.4 |
| Dimension S (mm) | 2.38 |
| Inscribed Circle Diameter (phi mm) | 6.35 |

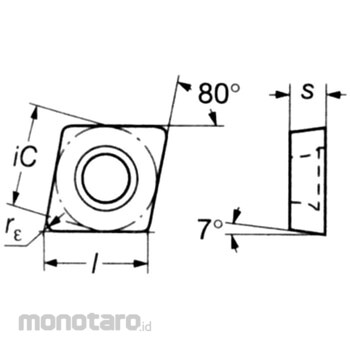

| Shape | Rhombus 80 degrees |
| TRUSCO Number | 609-5275 |
| Thickness (mm) | 2.38 |
| Thickness Tolerance (mm) | +/-0.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
