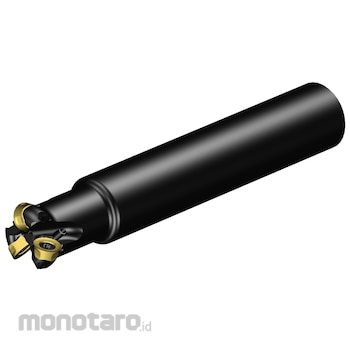

Sandvik Cutter 600
#Grup produk P104001916
Spesifikasi
| Functional length (LF) (mm) | 150 |
|---|---|
| Connection diameter (DCON) (mm) | 25 |
| Coolant entry style code (CNSC) | 1: axial concentric entry |
| Hand | R |
| Coolant Pressure (CP) (bar) | 50 |
| Body length (LB) (mm) | 31.8 |
| Body material code (BMC) | Steel |
| Clamping type code (MTP) | S |
| Cutting diameter (DC) (mm) | 15 |
| Cutting item count (CICT) | 3 |
| Cutting pitch differential (CPDF) | TRUE |
| Damping property (DPC) | FALSE |
| Depth of cut maximum (APMXEFW) (mm) | 5 |
| Depth of cut maximum (APMXFFW) (mm) | 5 |
| Maximum cutting diameter (DCX) (mm) | 25 |
| Maximum plunge depth (AZ) (mm) | 1.5 |
| Maximum ramping angle (RMPX) (°) | 3 |
| Rotational speed maximum (RPMX) | 22,300 1/min |
| Sensor embedded property (SEP) | 0 |
| Torque (N m) | 3 |
| Usable length (LU) (mm) | 31.8 |
| Weight of item (kg) | 0.48 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
For titanium alloy machining, side turning, grooving, Coromant Capto
Feature
Long edge cutter exclusively for titanium alloy. High rigidity precision lock system. Good surface roughness with few chip steps.Ulasan Produk
