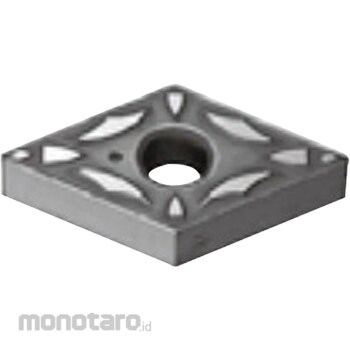

Sumitomo Electric Insert DNMG-FA
#Grup produk P103965802
Spesifikasi
| Clearance Angle (degree) | 0 |
|---|---|
| Thickness Tolerance (mm) | +/- 0.13 |
| Hole Shape | Cylindrical hole |
| Material | T1500A |
| Shape | Diamond 55 degrees |
| Chip breaker | Both sides |
| Corner Height Tolerance (mm) | +/- 0.08 to +/- 0.2 |
| Cutting Blade Length (mm) | 15.5 |
| Inscribed Circle Diameter (phi mm) | 12.7 |
| Inscribed Circle Tolerance (mm) | +/- 0.05 to +/- 0.15 |
| Thickness (mm) | 6.35 |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product Information - For items shipped separately, if ordered by cash on delivery, it will be shipped after the next dayUlasan Produk
