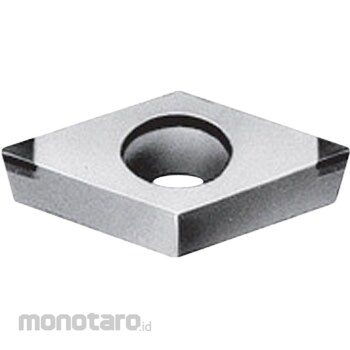

Sumitomo Electric Insert 2NU-DCGW-LE
#Grup produk P103963895
Spesifikasi
| Shape | Diamond 55 degrees |
|---|---|
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Material | BN7500 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Thickness (mm) | 3.97 |
| Chip breaker | None |
| Clearance Angle (degree) | 7 |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Thickness Tolerance (mm) | +/- 0.13 |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product InformationUlasan Produk
