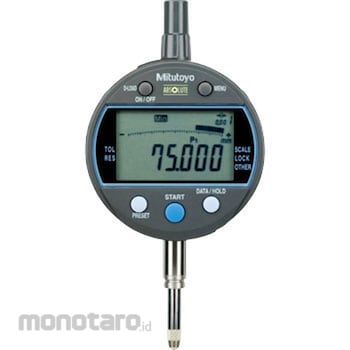

Mitutoyo Digimatic Indicator for Bore Gauge
#Grup produk P103935801
Spesifikasi
| Power Supply | CR2032 x 1 |
|---|---|
| Minimum display amount (mm) | 2-step switching (0.001mm / 0.01mm) |
| Repeat Precision (mm) | 0.002 or less |
| Data Output | Digimatic |
| Wide Range Accuracy (mm) | 0.003 or less |
| Detection Method | ABS capacitance type absolute encoder |
| Analog Bar Display | +/- 20 scale |
| Back lid specification | flat |
| Body Weight (g) | 170 |
| Display | 330 degrees rotation |
| Measuring Range (mm) | 12.7 |
| Mitutoyo Part Number | 543-310B |
| Response Speed | Unlimited |
| Return Error (mm) | 0.002 or less |
| Type | Cylinder gauge only |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Function : Preset: 3 master value memory, tolerance judgment: 3 upper/lower limit value memory, peak detection: Min, calculation:-, measured value memory: Available, display value hold: Available, setting input possible from PC (dedicated I/F), key Lockable (set by operating the main unit or PC communication), Parameter lockable (settable by PC communication) Battery Life (About Normal Use) : 1 year * When data processing device is not connected. Battery life varies depending on the number of uses and usage.
Warning
- For separately delivered items, if ordered by cash on delivery, it will be shipped after the next day [For products with calibration documents, it will not be possible to cancel after ordering] - For products with calibration documents and traceability system diagram, order on the web Only. - Documents that include (JCSS Calibration Certificate), (General Calibration Certificate / Traceability System Diagram) and (Calibration Certificate / Traceability System Diagram) are included in the product number. - For products with calibration documents, " Mitutoyo Calibration Certificate with Traceability System Diagram '', which the manufacturer performs calibration, and " Calibration Company Implementation Calibration Certificate, '' which performs calibration at calibration points based on the calibration company based on the ISO 9001 quality management system With traceability system diagram ".Feature
- Various buttons can be operated simply with three buttons and status icons. - Equipped with a wide LCD view and a new analog bar as standard. - High tracking performance is achieved by a high sampling rate.Use
- Cylinder gauge onlyUlasan Produk
