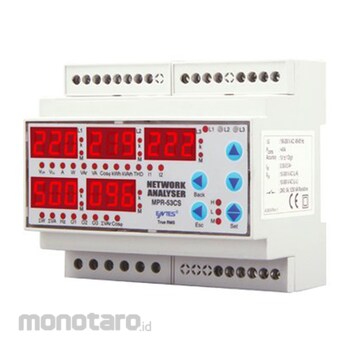

ENTES Network Analyzers with THD Measurement
#Grup produk P103841706
Spesifikasi
| Operating Voltage (V) | AC 110/230 ±% 10 veya AC/DC 45-265 veya DC 10-56 (MPR-53S-OG/MPR-53CS-OG) |
|---|---|
| Operating Frequency (Hz) | 45-65 |
| Dimensions (mm) | PR19, DIN6 PK26 96x96 |
| Protection Class | IP40 Front Panel,IP54 Optional |
| Display | Red LED; height 10mm |
| Measurement Minimum Current (mA) | 50 |
| Ambient Temperature (°C) | -5 to +50 |
| Connection Terminals | Screw Terminal with Socket |
| Connection Types | 3 Phase Neutral; 3 Phase; 3 Phase (Aron) |
| Standard | EN 60529 |
| Mounting | Front Panel Mounting (PR 19) / Rail Mounting (PK 26) |
| Power Consumption (V/A) | < 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Power and Energy Measuring for all Series MPR-53 : Network Analyzer with THD measurement Remote Monitoring Software: With the energy management software developed by ENTES, energy consumption and quality can be monitored in real time by reading the values measured by devices. As a result, comprehensive energy monitoring, data storage, optimum energy consumption control with the analysis of stored data, improvements in energy costs, and sustainable goals for energy systems are accomplished.
