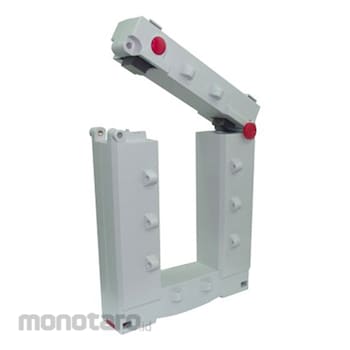

ENTES Split Core Current Transformers
#Grup produk P103841511
Spesifikasi
| Primary Current (A) | 1200-1500-1600-2000-2500-3000-4000 |
|---|---|
| Nominal Power (VA) | 10-15-30-15 |
| Internal Dimension (mm) | 80x160, 80x60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Split-core current transformers are used generally due to their ability to be easily mounted without detaching busbars and conductors in operating systems. - Operating temperature -5 C/+50 C - Storage temperature -25 C/+70 C - Thanks to their 35mm and 45mm busbar openings that comply with the standard leg width of breakers, 3-Phase current transformers offer direct installation possibility at the breaker outputs. Thereby, they significantly improve the installation times.
Feature
- Thermal Continuous Nominal Current Icth=1.0xIn - Thermal Instantaneous Nominal Current Ith=60xIn, 1s - Maximum Operating Voltage Um: 0,72kV - Insulation Test Voltage 3kV, Ueff, 50Hz, 1min - Frequency: 50Hz - Insulation Class: E - Standards: DIN EN 60044/1, VDE 0414-1Ulasan Produk
