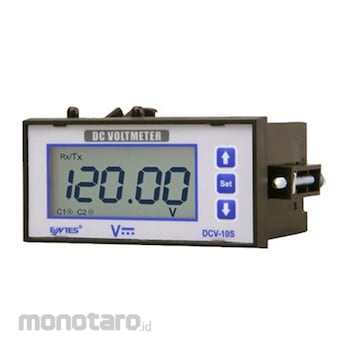

ENTES DC Voltmeter
#Grup produk P103841487
Spesifikasi
| Operating Voltage (V) | AC/DC 85-265 |
|---|---|
| Operating Frequency (Hz) | 50-60 |
| Measurement Input Resistance (MΩ) | < 2 |
| Protection Class | IP 40 |
| Dimensions (mm) | PR 20, 48x96 |
| Accuracy | 0.5%± 1 Digit [(10-100%) x full scale] |
| Measurement Range (V) | ±200 |
| Operating Temperature (°C) | -20 to +70 |
| Overvoltage Category | III |
| Connection Terminals | PR 20 Sockets with screws |
| Connection Types | Single Phase, 2 Wires |
| Cable Cross Section (mm²) | 2.5 For Terminals |
| Mounting | Panel mounting (PR 20) |
| Power Consumption (V/A) | < 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- The device has been designed to measure the voltage of a DC system. - Wide supply range, 85-265 VAC/DC(DCV-10),10-56 DC (DCV-11) - Communication with MODBUS RTU protocol over RS485 line - With 2 Pieces of Programmable Alarm Relays, the range where the voltage rating in system is required to run can be determined and when the voltage goes out of this rating, it can be ensured to give warning signal by Alarm1 (C1) and Alarm2 (C2) contact outputs. (DCA-10C/10CS/11C/11CS) - Saves maximum and minimum values - Easy access to settings and best view under any lighting condition with the help of backlit LCD screen - Adjustable measurement period between 1 and 600 seconds
