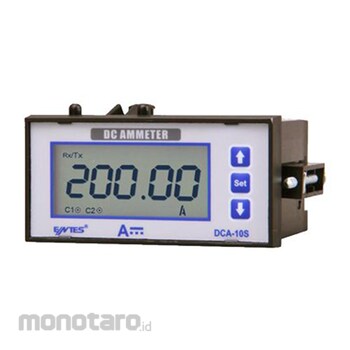

ENTES DC Ammeter
#Grup produk P103841478
Spesifikasi
| Operating Voltage (V) | AC/DC 85-265 |
|---|---|
| Operating Frequency (Hz) | 50-60 |
| Measurement Input Impedance (kΩ) | 1 |
| Protection Class | IP 40 |
| Dimensions (mm) | PR 20, 48x96 |
| Accuracy | 0.5%± 1 Digit [(10-100%) x full scale] |
| Measurement Range (A) | ± 10000 |
| Shunt Voltage (mV) | 50-150 |
| Operating Temperature (°C) | -20 to +70 |
| Overvoltage Category | III |
| Connection Terminals | PR 20 Sockets with screws |
| Connection Types | Single Phase, 2 Wires |
| Cable Cross Section (mm²) | 2.5 For Terminals |
| Mounting | Panel mounting (PR 20) |
| Power Consumption (V/A) | < 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Current is measured via an externally connected shunt resistance. - Wide supply voltage range, 85-265 VAC/DC (DCA-10), 10-56 VDC (DCA-11) - Communication with the MODBUS RTU protocol over the RS-485 line - With 2 Pieces of Programmable Alarm Relays, the range where the current rating in system is required to run can be determined and when the current goes out of this rating, it can be ensured to give warning signal by Alarm1 (C1) and Alarm2 (C2) contact outputs. (DCA-10C/10CS/11C/11CS) - Saves maximum and minimum values, - Easy access to the settings with the backlit LCD display - Measurement period adjustable between 1 to 600 secondsUlasan Produk
