It can be used widely for general industry. Standard belt will have conductivity. (Electrical resistance: 6M omega below). In order to prevent the offset of the belt, the resistor is using alternately S-twist, Z twisted.

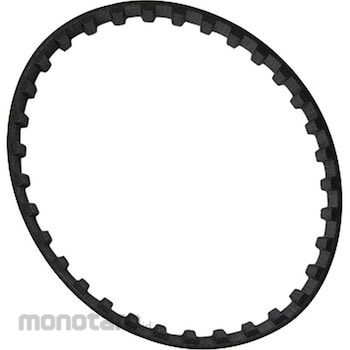

Mitsuboshi Classical Timing Belt L-Series (38.1mm)
#Grup produk P103762393
Spesifikasi
| Type | Type G (standard) |
|---|---|
| Belt Type | Timing Belt (Single) |
| Belt Nominal Width | 150 |
| Belt Width (mm) | 38.1 |
| Belt Pitch Circumference (mm) | 276.23 |
| Number of Teeth | 29 |
| Maximum Speed (m/s) | 30 |
| Minimum Pulley Diameter (mm) | 36 |
| Tooth pitch (mm) | 9.525 |
| Operating Temperature Range (°C) | -30 to +90 |
| Belt Material | Chloroprene Rubber |
| Belt Height (mm) | 3.61 |
| Length (inch) | 10.9 |
