- The belt is flexible and can be used with a small pulley diameter.
- Meshing is smooth and quiet driving is possible.
- Requires less belt tension and can be used with low axial load.
- Standard pulleys are backlash-free, improving positioning accuracy.
- High torque transmission is possible compared to the conventional ISO JIS tooth profile.
Mitsuboshi Super Torque Timing Belt 100S2M Type (Length 402 to 1878mm)
#Grup produk P103698142
Spesifikasi
| Maximum Speed (m/s) | 30 |
|---|---|
| Height (mm) | 1.36 |
| Minimum Pulley Diameter (mm) | 8.91 |
| Belt Type | Timing Belt |
| Number of Teeth | 762 |
| Type | G Type (standard) |
| Tooth pitch (mm) | 2 |
| Belt Pitch Circumference (mm) | 1524 |
| Belt Width (mm) | 10 |
| Belt Material | Chloroprene Rubber |

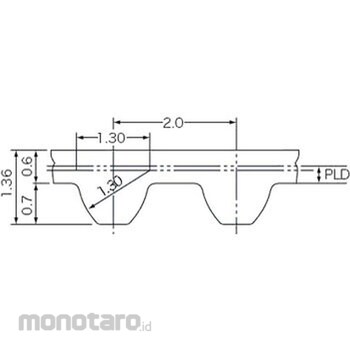

| Tooth Profile | S2M |
