Sumitomo Electric Chip TBGT-FX
#Grup produk P103691101

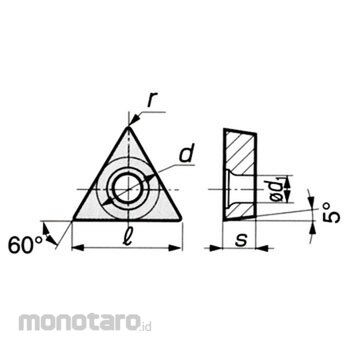

Spesifikasi
| Cutting Blade Length (mm) | 6.9 |
|---|---|
| Clearance Angle (degree) | 5 |
| Thickness (mm) | 1.59 |
| Hole Shape | Partially cylindrical hole one side 40° -60° |
| Corner Radius (mm) | 0.4 |
| Chip breaker | One side |
| Blade Length l (mm) | 6.9 |
| Corner Height Tolerance (mm) | ± 0.025 |
| Hole Diameter D1 (ɸ mm) | 2.2 |
| Inscribed Circle Diameter (ɸ mm) | 3.97 |
| Inscribed Circle Diameter d (ɸ mm) | 3.97 |
| Inscribed Circle Tolerance (mm) | ± 0.025 |
| Material | AC530U |
| Nose Radius r (mm) | 0.4 |
| Selfish | right |
| Shape | Equilateral triangle 60° |
| Thickness Tolerance (mm) | ± 0.13 |
| Thickness s (mm) | 1.59 |
| Type | Positive |
| With or Without Breaker | Yes |
