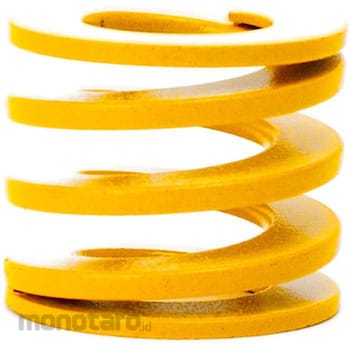

TOHATSU Powerful Spring
#Grup produk P103659187
Spesifikasi
| Spring Constant (N/mm) | 56.62 |
|---|---|
| Deflection (300,000 Times, mm) | 12.5 |
| Material | Silicon chrome steel for spring |
| Outer Diameter (mm) | Ø30 |
| Load (500,000 Times, N [kgf]) | 637 [65.0] |
| Color | yellow |
| Deflection (1 Million Times, mm) | 10 |
| Deflection (500,000 Times, mm) | 11.3 |
| Free Length (mm) | 25 |
| Inner Diameter (mm) | Ø16 |
| Load (1 Million Times, N [kgf]) | 569 [58.0] |
| Load (300,000 Times, N [kgf]) | 706 [72.0] |
| Operating Temperature Range (°C) | 150-30 |
| Spring Type | Powerful spring |
| TRUSCO Number | 443-1561 |
| Type | Light and light load |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Do not use with a deflection exceeding free length x 50.0%. * When installing, apply initial pressure.Feature
"Strong springs", unlike conventional round wires, use a modified cross-section material, contributing to the miniaturization of Japanese molds.Ulasan Produk
