Bridgestone JL-KC Swivel Joint
#Grup produk P103466763
Spesifikasi
| Body Material | Steel |
|---|---|
| Type | General swivel |
| Size | 4 |
| Operating Temperature Range (°C) | -30 to +100 |

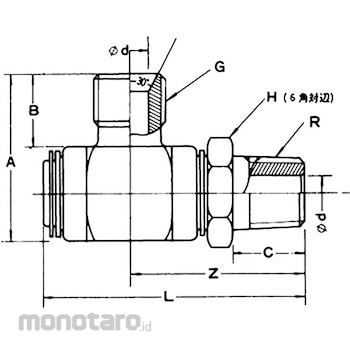

| Dimensions h (mm) | 19 |
| Maximum Operating Pressure (MPa) | 20.5 |
| Dimension A (mm) | 32.0 |
| Surface Treatment | Zinc plating / chromate treatment |
| Dimension B (mm) | 13.0 |
| Dimension C (mm) | 13.0 |
| Dimension Z (mm) | 36.0 |
| Dimensions d (mm) | 5.0 |
| Material (O-ring) | NBR |
| Dimension G | 1/4 |
| Dimension L (mm) | 54 |
| Dimensions r | 1/4 |
| Minimum Bursting Pressure (MPa) | 82 |
