Autonics Rotary Encoder E68S Inkremental
#Grup produk P103150853
Kondisi Barang:
Authorized Partner
Spesifikasi
| Connection Type | Radial Connector Type |
|---|---|
| Control Output | Line Driver |
| Starting Torque (gf.cm) | 1500 (Maximum) |
| Resolution | 1024 |
| Environment Ambient Humidity (%RH) | 35 to 85; Storage: 35 to 90 |
| Environment Ambient Temperature (°C) | -10 to 70; Storage: -25 to 85 |
| Level of Protection | IP65 |
| Maximum Allowable Revolution (rpm) | 6500 |
| Maximum Response Frequency (kHz) | 180 |
| Output Phases | A, B, Z |
| Power Supply (V DC) | 5 (±5%(ripple P-P: max. 5%)) |
| Shaft Outer Diameter (mm) | 15 |
| Type | Incremental |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

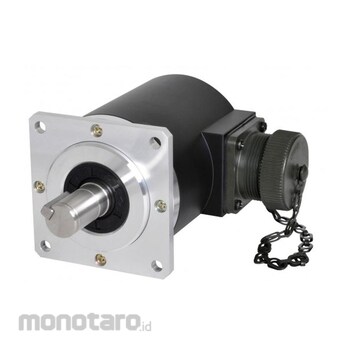

The E68S series incremental rotary encoders feature a Ø68 mm housing size with a Ø15 mm solid shaft. The unit can operate with a radial load of up to 20 kgf and a thrust load of up to 10 kgf. This series is ideal for operation with machine tool main shafts. The radial connector type encoder has a protection rating of IP65 for safe operation in a variety of environments.
