CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-63D Stroke 25
#Grup produk P103138268
Spesifikasi
| Minimum Working Pressure (MPa) | 0.05 |
|---|---|
| format | Basic form |
| Cushion | With rubber cushion on both sides |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Air cushion | 13.4 mm (effective length) |
| Allowable Energy Absorption (J) | 1.6 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1 / 4 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Mounting Method | -(switch) |
| Operating Piston Speed (mm/s) | 30 to 1000 (Please use within the allowable energy absorption) |
| Operation Method | Backward movement |
| Stroke | 25 |
| Stroke length tolerance | 2.7 (-1500) |
| Tube Inner Diameter (mm) | 63 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

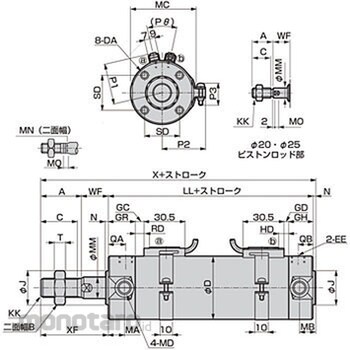

Simple design, overall length is short, easy to install work Dimension J (mm)=32; Dimension KK (mm)=M18 x 1.5; Dimension MB (mm)=12; Dimension D (mm)=72; Dimension B (mm)=27; Dimension MM (mm)=20; Dimension A (mm)=35; Dimension MN (mm)=17; Dimension C (mm)=32; Dimension MO (mm)=8; Dimension MD=M14; Dimension QA (mm)=15; Dimension T (mm)=11; Dimension QB (mm)=12; Dimension N (mm)=2; Dimension EE=Rc1 / 4; Dimension SD (mm)=38; Dimension WF (mm)=23; Dimension LL (mm)=90; Dimension MA (mm)=13; Dimension MC (mm)=69; Dimension X (mm)=150; Dimension XF (mm)=58; Dimension DA=M10 depth 16Ulasan Produk
