CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-63D Stroke 125
#Grup produk P103138231
Sebelum PPN:
Rp3.599.900 - Rp5.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Minimum Working Pressure (MPa) | 0.05 |
|---|---|
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

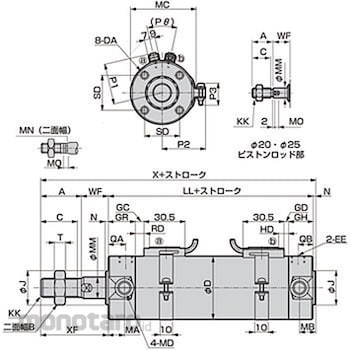

Simple design, overall length is short, easy to install work Dimension MO (mm)=8; Dimension J (mm)=32; Dimension X (mm)=150; Dimension MD=M14; Dimension MM (mm)=20; Dimension B (mm)=27; Dimension MA (mm)=13; Dimension T (mm)=11; Dimension DA=M10 depth 16; Dimension KK (mm)=M18 x 1.5; Dimension WF (mm)=23; Dimension EE=Rc1 / 4; Dimension MC (mm)=69; Dimension MB (mm)=12; Dimension D (mm)=72; Dimension LL (mm)=90; Dimension SD (mm)=38; Dimension N (mm)=2; Dimension A (mm)=35; Dimension QB (mm)=12; Dimension C (mm)=32; Dimension QA (mm)=15; Dimension MN (mm)=17; Dimension XF (mm)=58Ulasan Produk
