CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-50D Stroke 50
#Grup produk P103138116
Sebelum PPN:
Rp2.599.900 - Rp5.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Guaranteed Pressure Resistance (MPa) | 1.6 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

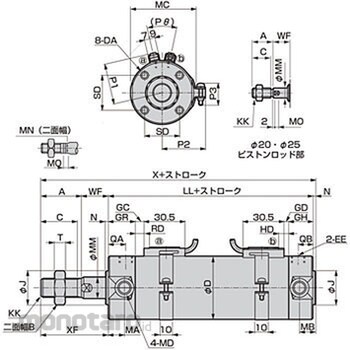

Simple design, overall length is short, easy to install work Dimension X (mm)=150; Dimension MM (mm)=20; Dimension QB (mm)=12; Dimension XF (mm)=58; Dimension MO (mm)=8; Dimension LL (mm)=90; Dimension B (mm)=27; Dimension D (mm)=58; Dimension A (mm)=35; Dimension DA=M8 depth 16; Dimension MA (mm)=13; Dimension SD (mm)=32; Dimension KK (mm)=M18 x 1.5; Dimension MC (mm)=55; Dimension MD=M12; Dimension C (mm)=32; Dimension T (mm)=11; Dimension N (mm)=2; Dimension WF (mm)=23; Dimension MN (mm)=17; Dimension MB (mm)=12; Dimension J (mm)=30; Dimension EE=Rc1 / 4; Dimension QA (mm)=15Ulasan Produk
