CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-50D Stroke 150
#Grup produk P103138064
Sebelum PPN:
Rp3.099.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operation Method | Backward movement |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

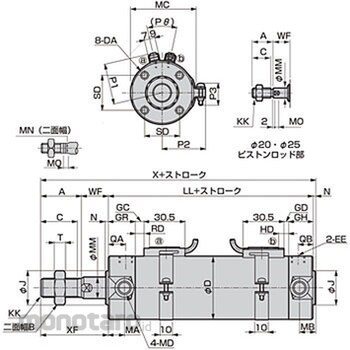

Simple design, overall length is short, easy to install work Dimension C (mm)=32; Dimension EE=Rc1 / 4; Dimension A (mm)=35; Dimension J (mm)=30; Dimension MD=M12; Dimension MO (mm)=8; Dimension D (mm)=58; Dimension X (mm)=150; Dimension SD (mm)=32; Dimension XF (mm)=58; Dimension QA (mm)=15; Dimension MM (mm)=20; Dimension MB (mm)=12; Dimension KK (mm)=M18 x 1.5; Dimension MA (mm)=13; Dimension QB (mm)=12; Dimension WF (mm)=23; Dimension DA=M8 depth 16; Dimension MC (mm)=55; Dimension N (mm)=2; Dimension T (mm)=11; Dimension LL (mm)=90; Dimension MN (mm)=17; Dimension B (mm)=27Ulasan Produk
