CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-50B Stroke 75

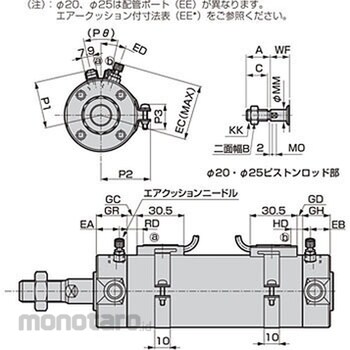

Simple design, overall length is short, easy to install work Dimension MD=M12; Dimension J (mm)=30; Dimension QA (mm)=15; Dimension QB (mm)=12; Dimension MC (mm)=55; Dimension MA (mm)=13; Dimension A (mm)=35; Dimension SD (mm)=32; Dimension N (mm)=2; Dimension C (mm)=32; Dimension MM (mm)=20; Dimension MB (mm)=12; Dimension LL (mm)=90; Dimension E=20 degree (theta); Dimension EB (mm)=15.5; Dimension MN (mm)=17; Dimension XF (mm)=58; Dimension T (mm)=11; Dimension EC (mm)=43; Dimension X (mm)=150; Dimension KK (mm)=M18 x 1.5; Dimension EE=Rc1 / 4; Dimension D (mm)=58; Dimension B (mm)=27; Dimension MO (mm)=8; Dimension DA=M8 depth 16; Dimension EA (mm)=18.5; Dimension WF (mm)=23
