CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-50B Stroke 50

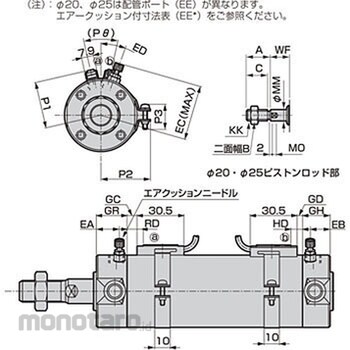

Simple design, overall length is short, easy to install work Dimension MO (mm)=8; Dimension DA=M8 depth 16; Dimension B (mm)=27; Dimension EB (mm)=15.5; Dimension D (mm)=58; Dimension A (mm)=35; Dimension QA (mm)=15; Dimension QB (mm)=12; Dimension N (mm)=2; Dimension C (mm)=32; Dimension MN (mm)=17; Dimension XF (mm)=58; Dimension J (mm)=30; Dimension LL (mm)=90; Dimension MA (mm)=13; Dimension E=20 degree (theta); Dimension MB (mm)=12; Dimension MM (mm)=20; Dimension X (mm)=150; Dimension KK (mm)=M18 x 1.5; Dimension T (mm)=11; Dimension SD (mm)=32; Dimension MD=M12; Dimension MC (mm)=55; Dimension EE=Rc1 / 4; Dimension EA (mm)=18.5; Dimension WF (mm)=23; Dimension EC (mm)=43
