CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-40D Stroke 100
#Grup produk P103137861
Sebelum PPN:
Rp1.899.900 - Rp4.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Working Fluid | Compressed air |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

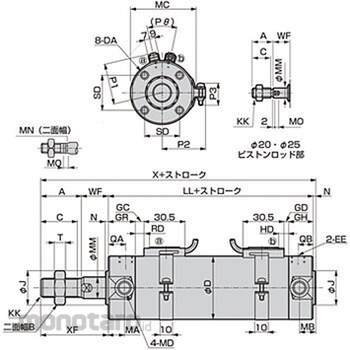

Simple design, overall length is short, easy to install work Dimension DA=M6 depth 12; Dimension SD (mm)=26; Dimension MC (mm)=44; Dimension MA (mm)=12; Dimension C (mm)=27; Dimension N (mm)=2; Dimension J (mm)=25; Dimension EE=Rc1 / 8; Dimension LL (mm)=78; Dimension MO (mm)=6; Dimension T (mm)=8; Dimension X (mm)=130; Dimension QA (mm)=13; Dimension QB (mm)=12; Dimension MB (mm)=10; Dimension MM (mm)=16; Dimension WF (mm)=20; Dimension A (mm)=30; Dimension KK (mm)=M14 x 1.5; Dimension MN (mm)=14; Dimension D (mm)=47; Dimension B (mm)=22; Dimension XF (mm)=50; Dimension MD=M10Ulasan Produk
