CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-40B Stroke 300

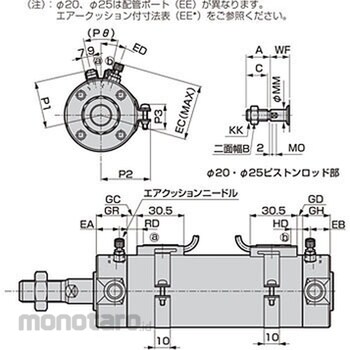

Simple design, overall length is short, easy to install work Dimension XF (mm)=50; Dimension EB (mm)=13; Dimension D (mm)=47; Dimension EA (mm)=15; Dimension QB (mm)=12; Dimension MB (mm)=10; Dimension EE=Rc1 / 8; Dimension A (mm)=30; Dimension EC (mm)=36.6; Dimension MO (mm)=6; Dimension MM (mm)=16; Dimension SD (mm)=26; Dimension C (mm)=27; Dimension MD=M10; Dimension E=20 degree (theta); Dimension X (mm)=130; Dimension MC (mm)=44; Dimension MA (mm)=12; Dimension B (mm)=22; Dimension KK (mm)=M14 x 1.5; Dimension WF (mm)=20; Dimension N (mm)=2; Dimension MN (mm)=14; Dimension QA (mm)=13; Dimension DA=M6 depth 12; Dimension T (mm)=8; Dimension J (mm)=25; Dimension LL (mm)=78
