CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-32D Stroke 300
#Grup produk P103137746
Sebelum PPN:
Rp1.699.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Tube Inner Diameter (mm) | 32 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

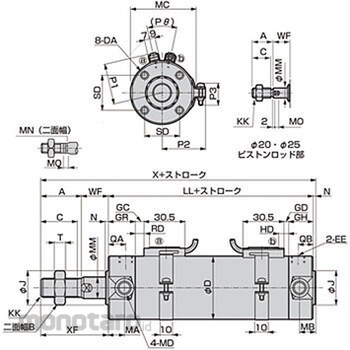

Simple design, overall length is short, easy to install work Dimension LL (mm)=71; Dimension N (mm)=2; Dimension X (mm)=113; Dimension MO (mm)=5.5; Dimension MN (mm)=10; Dimension SD (mm)=20; Dimension D (mm)=38; Dimension DA=M5 depth 7.5; Dimension J (mm)=18; Dimension B (mm)=17; Dimension QA (mm)=12; Dimension A (mm)=22; Dimension MA (mm)=11; Dimension MM (mm)=12; Dimension MC (mm)=36; Dimension C (mm)=19.5; Dimension WF (mm)=18; Dimension EE=Rc1 / 8; Dimension XF (mm)=40; Dimension QB (mm)=10; Dimension KK (mm)=M10 x 1.25; Dimension MB (mm)=10; Dimension T (mm)=6; Dimension MD=M8Ulasan Produk
