CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-32D Stroke 250
#Grup produk P103137737
Sebelum PPN:
Rp1.599.900 - Rp3.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

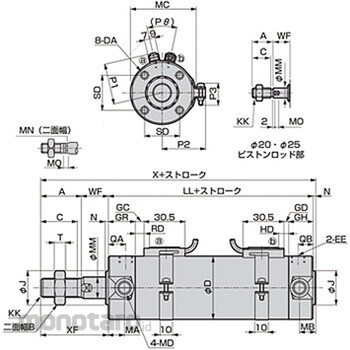

Simple design, overall length is short, easy to install work Dimension A (mm)=22; Dimension QB (mm)=10; Dimension B (mm)=17; Dimension DA=M5 depth 7.5; Dimension WF (mm)=18; Dimension XF (mm)=40; Dimension N (mm)=2; Dimension D (mm)=38; Dimension MD=M8; Dimension MM (mm)=12; Dimension LL (mm)=71; Dimension J (mm)=18; Dimension C (mm)=19.5; Dimension QA (mm)=12; Dimension MN (mm)=10; Dimension MB (mm)=10; Dimension KK (mm)=M10 x 1.25; Dimension MC (mm)=36; Dimension EE=Rc1 / 8; Dimension T (mm)=6; Dimension SD (mm)=20; Dimension X (mm)=113; Dimension MO (mm)=5.5; Dimension MA (mm)=11Ulasan Produk
