CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-32B Stroke 300

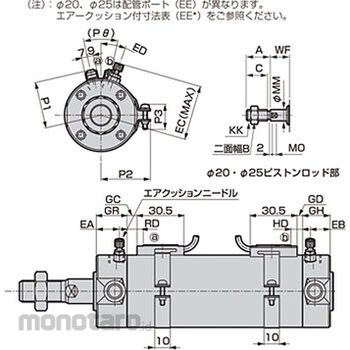

Simple design, overall length is short, easy to install work Dimension WF (mm)=18; Dimension EC (mm)=32.8; Dimension MD=M8; Dimension T (mm)=6; Dimension MN (mm)=10; Dimension N (mm)=2; Dimension EB (mm)=12; Dimension MB (mm)=10; Dimension LL (mm)=71; Dimension MA (mm)=11; Dimension QB (mm)=10; Dimension SD (mm)=20; Dimension B (mm)=17; Dimension QA (mm)=12; Dimension EE=Rc1 / 8; Dimension J (mm)=18; Dimension X (mm)=113; Dimension E=25 degree; Dimension MC (mm)=36; Dimension MO (mm)=5.5; Dimension XF (mm)=40; Dimension MM (mm)=12; Dimension C (mm)=19.5; Dimension D (mm)=38; Dimension KK (mm)=M10 x 1.25; Dimension A (mm)=22; Dimension DA=M5 depth 7.5; Dimension EA (mm)=14
