CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-25D Stroke 25

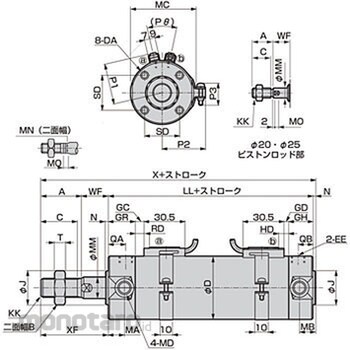

Simple design, overall length is short, easy to install work Dimension A (mm)=22; Dimension MM (mm)=10; Dimension MN (mm)=8; Dimension B (mm)=17; Dimension C (mm)=19.5; Dimension SD (mm)=16.5; Dimension MB (mm)=11; Dimension D (mm)=31; Dimension J (mm)=14; Dimension DA=M5 depth 6.5; Dimension T (mm)=6; Dimension MO (mm)=5; Dimension MA (mm)=11; Dimension XF (mm)=40; Dimension MC (mm)=29; Dimension MD=M6; Dimension EE=Rc1 / 8; Dimension N (mm)=2; Dimension QA (mm)=12; Dimension X (mm)=111; Dimension LL (mm)=69; Dimension KK (mm)=M10 x 1.25; Dimension WF (mm)=18; Dimension QB (mm)=10
