CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-25B Stroke 250

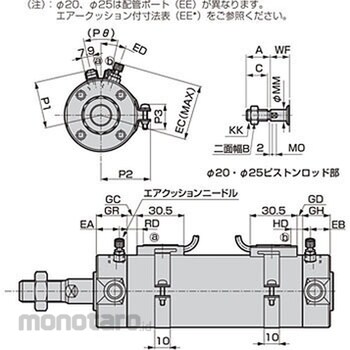

Simple design, overall length is short, easy to install work Dimension QB (mm)=10; Dimension WF (mm)=18; Dimension QA (mm)=12; Dimension MD=M6; Dimension MN (mm)=8; Dimension C (mm)=19.5; Dimension EE=M5; Dimension MO (mm)=5; Dimension D (mm)=31; Dimension MM (mm)=10; Dimension DA=M5 depth 6.5; Dimension XF (mm)=40; Dimension MC (mm)=29; Dimension N (mm)=2; Dimension KK (mm)=M10 x 1.25; Dimension A (mm)=22; Dimension EA (mm)=14; Dimension LL (mm)=69; Dimension EC (mm)=29.5; Dimension MA (mm)=11; Dimension MB (mm)=11; Dimension E=30 degree (theta); Dimension T (mm)=6; Dimension J (mm)=14; Dimension EB (mm)=12; Dimension SD (mm)=16.5; Dimension B (mm)=17; Dimension X (mm)=111
