CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-25B Stroke 125

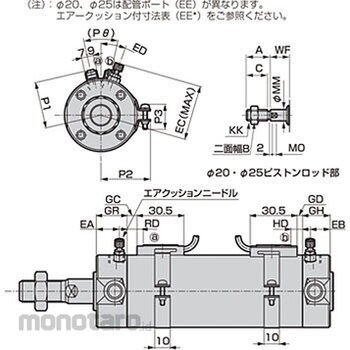

Simple design, overall length is short, easy to install work Dimension KK (mm)=M10 x 1.25; Dimension D (mm)=31; Dimension LL (mm)=69; Dimension X (mm)=111; Dimension WF (mm)=18; Dimension MB (mm)=11; Dimension MO (mm)=5; Dimension MM (mm)=10; Dimension EA (mm)=14; Dimension A (mm)=22; Dimension MD=M6; Dimension E=30 degree (theta); Dimension T (mm)=6; Dimension EE=M5; Dimension EB (mm)=12; Dimension SD (mm)=16.5; Dimension QB (mm)=10; Dimension C (mm)=19.5; Dimension MA (mm)=11; Dimension B (mm)=17; Dimension XF (mm)=40; Dimension J (mm)=14; Dimension N (mm)=2; Dimension EC (mm)=29.5; Dimension DA=M5 depth 6.5; Dimension MN (mm)=8; Dimension QA (mm)=12; Dimension MC (mm)=29
