CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-20D Stroke 75
#Grup produk P103137409
Sebelum PPN:
Rp1.099.900 - Rp3.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Operating Piston Speed (mm/s) | 30 to 1000 (Please use within the allowable energy absorption) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

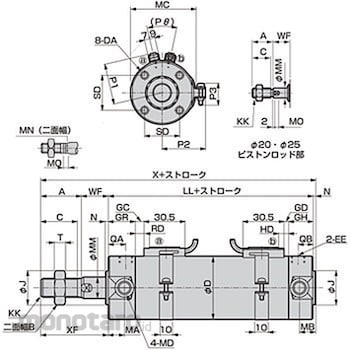

Simple design, overall length is short, easy to install work Dimension MC (mm)=24; Dimension T (mm)=5; Dimension B (mm)=13; Dimension QA (mm)=12; Dimension WF (mm)=17; Dimension MD=M5; Dimension A (mm)=18; Dimension MA (mm)=11; Dimension KK (mm)=M8; Dimension DA=M4 depth 6.5; Dimension QB (mm)=10; Dimension X (mm)=106; Dimension LL (mm)=69; Dimension MB (mm)=11; Dimension SD (mm)=14; Dimension C (mm)=15.5; Dimension D (mm)=26; Dimension EE=Rc1 / 8; Dimension MN (mm)=6; Dimension N (mm)=2; Dimension XF (mm)=35; Dimension J (mm)=12; Dimension MO (mm)=4; Dimension MM (mm)=8Ulasan Produk
