CKD Tight Cylinder Basic (Single Rod) Base CMK2-CC-32-200
#Grup produk P103136561
Sebelum PPN:
Rp1.699.900 - Rp4.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Connection aperture | Rc1/8 |
| Stroke (mm) | 200 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Tube Inner Diameter (mm) | 32 |
| Working Fluid | Compressed air |
| format | One mountain clevis integrated type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

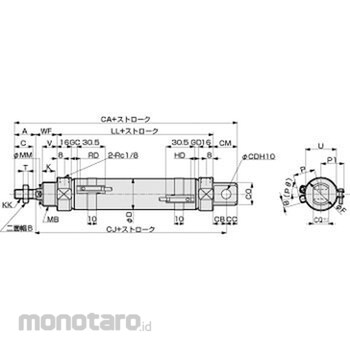

Dimension K (mm)=14; Dimension CC (mm)=12; Dimension MM (mm)=12; Dimension D (mm)=33.6; Dimension B (mm)=17; Dimension A (mm)=23; Dimension T (mm)=6; Dimension C (mm)=20; Dimension U (mm)=34; Dimension CQ (mm)=16; Dimension LL (mm)=69; Dimension CA (mm)=141; Dimension CS (mm)=76; Dimension CD (mm)=10; Dimension F (mm)=36; Dimension WF (mm)=23; Dimension CO (mm)=24; Dimension CM (mm)=26; Dimension V (mm)=16; Dimension CR (mm)=56; Dimension MB (mm)=M26 x 1.5; Dimension CJ (mm)=106; Dimension KK (mm)=M10 x 1.25; Dimension CB (mm)=14
