CKD Tight Cylinder Basic (Single Rod) Base CMK2-CC-32-250
#Grup produk P103136482
Sebelum PPN:
Rp1.799.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| format | One mountain clevis integrated type |
|---|---|
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Cushion | Rubber cushion |
| Allowable Energy Absorption (J) | 0.424 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

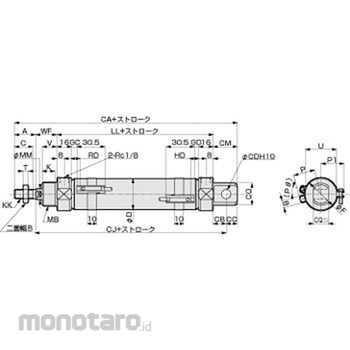

Dimension CD (mm)=10; Dimension CR (mm)=56; Dimension CM (mm)=26; Dimension V (mm)=16; Dimension CS (mm)=76; Dimension D (mm)=33.6; Dimension U (mm)=34; Dimension GC (mm)=5.5; Dimension K (mm)=14; Dimension P1 (mm)=25.5; Dimension CC (mm)=12; Dimension T (mm)=6; Dimension CQ (mm)=16; Dimension MM (mm)=12; Dimension MB (mm)=M26 x 1.5; Dimension RD (mm)=9.5; Dimension HD (mm)=8.5; Dimension WF (mm)=23; Dimension CA (mm)=141; Dimension CB (mm)=14; Dimension A (mm)=23; Dimension C (mm)=20; Dimension CJ (mm)=106; Dimension F (mm)=36; Dimension P (mm)=24.3; Dimension CO (mm)=24; Dimension LL (mm)=69; Dimension GD (mm)=4.5; Dimension KK (mm)=M10 x 1.25; Dimension B (mm)=17
