CKD Tight Cylinder Basic (Single Rod) Base CMK2-CC-25-200
#Grup produk P103136446
Sebelum PPN:
Rp1.599.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Energy Absorption (J) | 0.308 |
|---|---|
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Stroke (mm) | 200 |
| Tube Inner Diameter (mm) | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

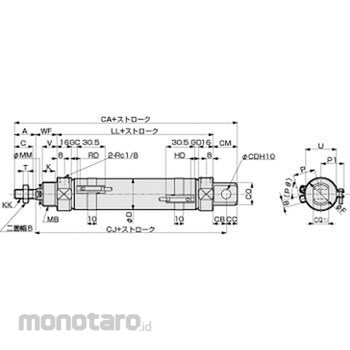

Dimension T (mm)=6; Dimension F (mm)=32; Dimension CC (mm)=9; Dimension CD (mm)=8; Dimension V (mm)=16; Dimension CR (mm)=56; Dimension CS (mm)=76; Dimension C (mm)=20; Dimension CQ (mm)=16; Dimension U (mm)=30; Dimension CM (mm)=21; Dimension A (mm)=23; Dimension LL (mm)=69; Dimension CB (mm)=12; Dimension K (mm)=14; Dimension KK (mm)=M10 x 1.25; Dimension D (mm)=26.4; Dimension CJ (mm)=104; Dimension CO (mm)=24; Dimension CA (mm)=136; Dimension MB (mm)=M26 x 1.5; Dimension B (mm)=17; Dimension MM (mm)=12; Dimension WF (mm)=23
