CKD Tight Cylinder Basic (Single Rod) Base CMK2-CC-25-25
#Grup produk P103136400
Sebelum PPN:
Rp1.199.900 - Rp2.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Energy Absorption (J) | 0.308 |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Stroke (mm) | 25 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Tube Inner Diameter (mm) | 25 |
| format | One mountain clevis integrated type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

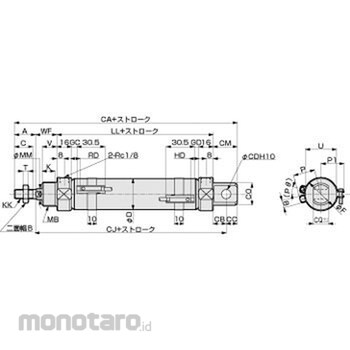

Dimension CR (mm)=56; Dimension CB (mm)=12; Dimension V (mm)=16; Dimension KK (mm)=M10 x 1.25; Dimension CA (mm)=136; Dimension CM (mm)=21; Dimension MM (mm)=12; Dimension T (mm)=6; Dimension B (mm)=17; Dimension CS (mm)=76; Dimension CO (mm)=24; Dimension F (mm)=32; Dimension WF (mm)=23; Dimension U (mm)=30; Dimension CQ (mm)=16; Dimension C (mm)=20; Dimension CD (mm)=8; Dimension MB (mm)=M26 x 1.5; Dimension CJ (mm)=104; Dimension LL (mm)=69; Dimension K (mm)=14; Dimension CC (mm)=9; Dimension A (mm)=23; Dimension D (mm)=26.4
