CKD Tight Cylinder Basic (Single Rod) Base CMK2-CA-40-100
#Grup produk P103136260
Sebelum PPN:
Rp1.799.900 - Rp4.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Energy Absorption (J) | 0.639 |
|---|---|
| Minimum Working Pressure (MPa) | 0.1 |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Cushion | Rubber cushion |
| Working Fluid | Compressed air |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 100 |
| Tube Inner Diameter (mm) | 40 |
| format | One mountain clevis shape |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

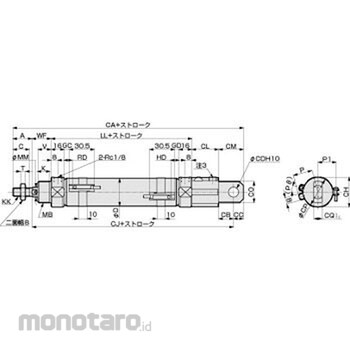

Dimension CH (mm)=35; Dimension LL (mm)=73; Dimension T (mm)=7; Dimension WF (mm)=23; Dimension CB (mm)=18; Dimension C (mm)=22; Dimension A (mm)=25; Dimension K (mm)=14; Dimension CC (mm)=12; Dimension CM (mm)=30; Dimension KK (mm)=M12 x 1.5; Dimension MM (mm)=14; Dimension B (mm)=19; Dimension GC (mm)=7; Dimension CL (mm)=32; Dimension CO (mm)=26; Dimension CA (mm)=183; Dimension CQ (mm)=10; Dimension D (mm)=41.6; Dimension CD (mm)=12; Dimension MB (mm)=M26 x 1.5; Dimension CJ (mm)=146; Dimension CP (mm)=37; Dimension V (mm)=16
