CKD Guided Cylinder Slide Bearing STG-M-63-100
#Grup produk P103135906
Sebelum PPN:
Rp9.999.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Energy Absorption (J) | 1.56 |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Working Fluid | Compressed air |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Bearing Type | Slide bearing |
| Connection aperture | Rc1/4 |
| Cushion | With rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Operating Piston Speed (mm/s) | 50 to 300 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Screw Type | Rc screw |
| Stroke (mm) | 100 |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 63 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

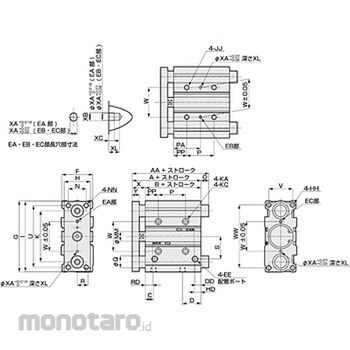

Dimension JJ (mm)=M10 depth 20; Dimension H (mm)=70; Dimension X (mm)=28 -2 ; Dimension PA (mm)=25 or less: 38, 25 or more 100 or less: 50, 100 or more 200 or less: 88; Dimension S (mm)=55; Dimension DD (mm)=15; Dimension D (mm)=35; Dimension W (mm)=80; Dimension WW (mm)=142; Dimension C (mm)=16.5; Dimension KA (mm)=8.6 penetration; Dimension I (mm)=158; Dimension KC (mm)=14 counterbore depth 9; Dimension RD (mm)=14; Dimension XA (mm)=5; Dimension B (mm)=49; Dimension V (mm)=58; Dimension NN (mm)=M10 penetration; Dimension Y (mm)=16; Dimension N (mm)=50; Dimension O (mm)=50 or less: 14, 50 or more and 200 or less: 39; Dimension PP (mm)=24; Dimension Q (mm)=25; Dimension EE (mm)=Rc1 / 4; Dimension XC (mm)=4; Dimension A (mm)=77; Dimension P (mm)=25 or less: 28, 25 or more and 100 or less: 52, 100 or more and 200 or less: 128; Dimension G (mm)=162; Dimension R (mm)=28; Dimension HD (mm)=16; Dimension XL (mm)=8; Dimension K (mm)=124; Dimension U (mm)=130; Dimension MM (mm)=20; Dimension AA (mm)=50 or less: 91, more than 50 and 200 or less: 116; Dimension HH (mm)=M10 depth 22; Dimension F (mm)=78; Dimension XB (mm)=6
