CKD Slide Bearing with Guide STG-M-50~ T3V Series
#Grup produk P103135863
Sebelum PPN:
Rp8.199.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection aperture | Rc1/4 |
|---|---|
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Allowable Energy Absorption (J) | 0.98 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Bearing Type | Slide bearing |
| Cushion | With rubber cushion |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Screw Type | Rc screw |
| Stroke length tolerance | +2.0 mm |
| Switch model number | T3V |
| Tube Inner Diameter (mm) | 50 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

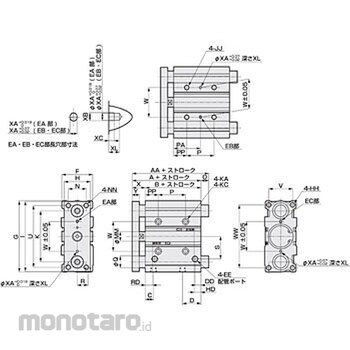

Dimension DD (mm)=11; Dimension X (mm)=28 -2 ; Dimension R (mm)=21.5; Dimension C (mm)=14; Dimension P (mm)=25 or less: 24, 25 or more and 100 or less: 48, 100 or more and 200 or less: 124; Dimension JJ (mm)=M10 depth 20; Dimension S (mm)=47; Dimension HD (mm)=11.5; Dimension K (mm)=110; Dimension W (mm)=66; Dimension V (mm)=46; Dimension Y (mm)=16; Dimension XC (mm)=4; Dimension HH (mm)=M10 depth 22; Dimension EE (mm)=Rc1 / 4; Dimension F (mm)=64; Dimension KC (mm)=14 counterbore depth 9; Dimension MM (mm)=20; Dimension XA (mm)=5; Dimension NN (mm)=M10 penetration; Dimension AA (mm)=50 or less: 91, more than 50 and 200 or less: 116; Dimension RD (mm)=13.5; Dimension Q (mm)=25; Dimension O (mm)=50 or less: 19, 50 or more and 200 or less: 44; Dimension B (mm)=44; Dimension WW (mm)=130; Dimension H (mm)=60; Dimension PP (mm)=24; Dimension A (mm)=72; Dimension XB (mm)=6; Dimension PA (mm)=25 or less: 36, 25 or more and 100 or less: 48, 100 or more and 200 or less: 86; Dimension XL (mm)=8; Dimension U (mm)=130; Dimension G (mm)=148; Dimension I (mm)=146; Dimension D (mm)=35; Dimension KA (mm)=8.6 penetration; Dimension N (mm)=40
