CKD Guided Cylinder Slide Bearing STG-M-32-200

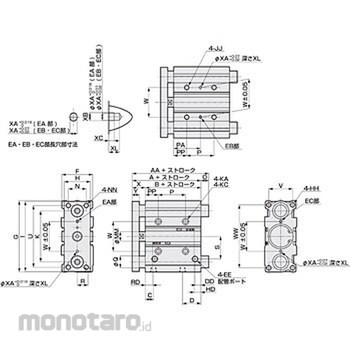

Dimension DD (mm)=9; Dimension EE (mm)=Rc1 / 8; Dimension MM (mm)=16; Dimension R (mm)=15; Dimension PP (mm)=21; Dimension B (mm)=37.5; Dimension G (mm)=112; Dimension KC (mm)=11 counterbore depth 7.5; Dimension D (mm)=30.5; Dimension XL (mm)=6; Dimension S (mm)=34; Dimension XA (mm)=4; Dimension K (mm)=78; Dimension N (mm)=30; Dimension X (mm)=22 _{-2 ; Dimension WW (mm)=98; Dimension H (mm)=44; Dimension I (mm)=110; Dimension V (mm)=34; Dimension XC (mm)=3; Dimension JJ (mm)=M8 depth 16; Dimension PA (mm)=25 or less: 33, 25 or more 100 or less: 45, 100 or more 200 or less: 83; Dimension KA (mm)=6.3 penetration; Dimension A (mm)=59.5; Dimension Y (mm)=12; Dimension Q (mm)=20; Dimension AA (mm)=50 or less: 79, more than 50 and 200 or less: 100; Dimension C (mm)=12.5; Dimension XB (mm)=4.5; Dimension HH (mm)=M8 depth 20; Dimension F (mm)=48; Dimension NN (mm)=M8 penetration; Dimension O (mm)=50 or less: 19.5, more than 50 and 200 or less: 40.5; Dimension RD (mm)=10; Dimension W (mm)=42; Dimension P (mm)=25 or less: 24, 25 or more and 100 or less: 48, 100 or more and 200 or less: 124; Dimension U (mm)=96; Dimension HD (mm)=8.5}
